Mounting

The device has "protection class IP20" and should be installed as protected as possible.

Tools required

You will need a drill, a 6 mm drill bit and a cross-headed screwdriver.

Relevant device information

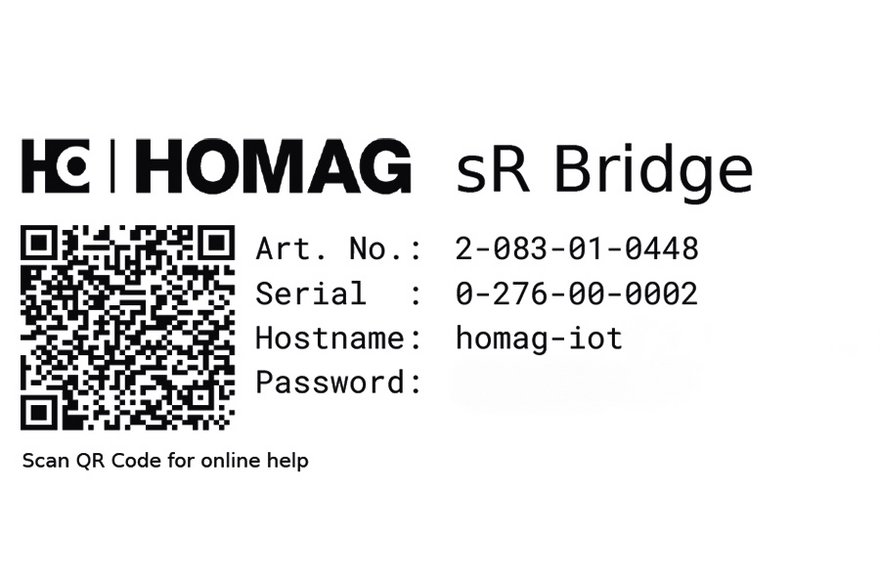

Important note: The information required for commissioning is printed on the sticker on the back of the device. Make a note of this or take a photo of the label before installing the appliance.

Explanation:

• Art. No = HOMAG article number
• Serial = The unique serial number of the device
• Hostname = Address at which the device can be opened in the browser. This is made up of the homag-iot-MAC address of the device
• Password = Device-specific password for accessing the device interface

Connecting accessories

• The power supply unit is plugged into connection X1.
• The network cable is plugged into LAN1.
• The external button is plugged into connection X13.
• Please seal the unused connections with the plugs supplied.
• The computer starts as soon as the power supply unit is connected to a socket.
• The network cable is connected to the hall network or to a free LAN port on a HOMAG Group Internet router.
• The external button can be freely positioned (cable length 25 m).

Installing the PC in the bracket

• The computer is snapped into the top-hat rail. The tab for unhooking it from the top-hat rail must point downwards.
• The accessories can be plugged in before or after.

Mounting on the wall

• Mark the drill holes.
• Drill the holes with the 6 mm drill bit and then insert the wall plugs.
• Screw in the screws with the cross-headed screwdriver - at a distance of approx. 3 mm from the wall.
• Hang the bracket onto the screws.
• Once installation is complete, you can remove the protective film from the HOMAG logo.

Mounting on the machine

• Mark the holes.
• ATTENTION: Check beforehand that there are no components behind the plate that could be damaged!
• Screw the screws directly into the sheet metal - these are self-tapping.
• Hook the bracket into the screws.
• Once installation is complete, you can remove the protective film from the HOMAG logo.

Mounting in the switch cabinet/TSN junction box

• ATTENTION: Electrically trained personnel required!
• You can mount the computer inside the control cabinet on a top-hat rail. The power supply is provided either by the power supply unit supplied or 24V DC from the machine.
• A space of 15 mm should be kept free around the sides of the computer.

Mounting without bracket

• The computer can also be placed without a bracket. The ventilation slots on the back must not be covered.
