Partner
Do you use different software systems and want to work with a consistent data flow? Together with other tapio partners, we provide you with a steadily growing number of coordinated interfaces for this purpose. This enables the networking of HOMAG's digital products with other applications such as industry solutions, ERP and CAD/CAM systems.
Borm
The "BormConnect interfaces" connect the ERP world of Borm with the apps/digital products from HOMAG.
Integrated functions:
- Sending orders to productionManager
- Sending orders to intelliDivide Cutting
More information: www.borm-software.com

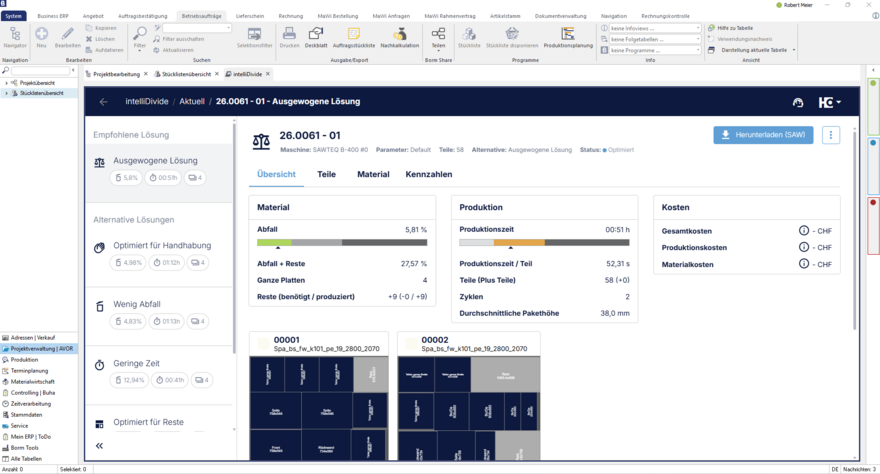

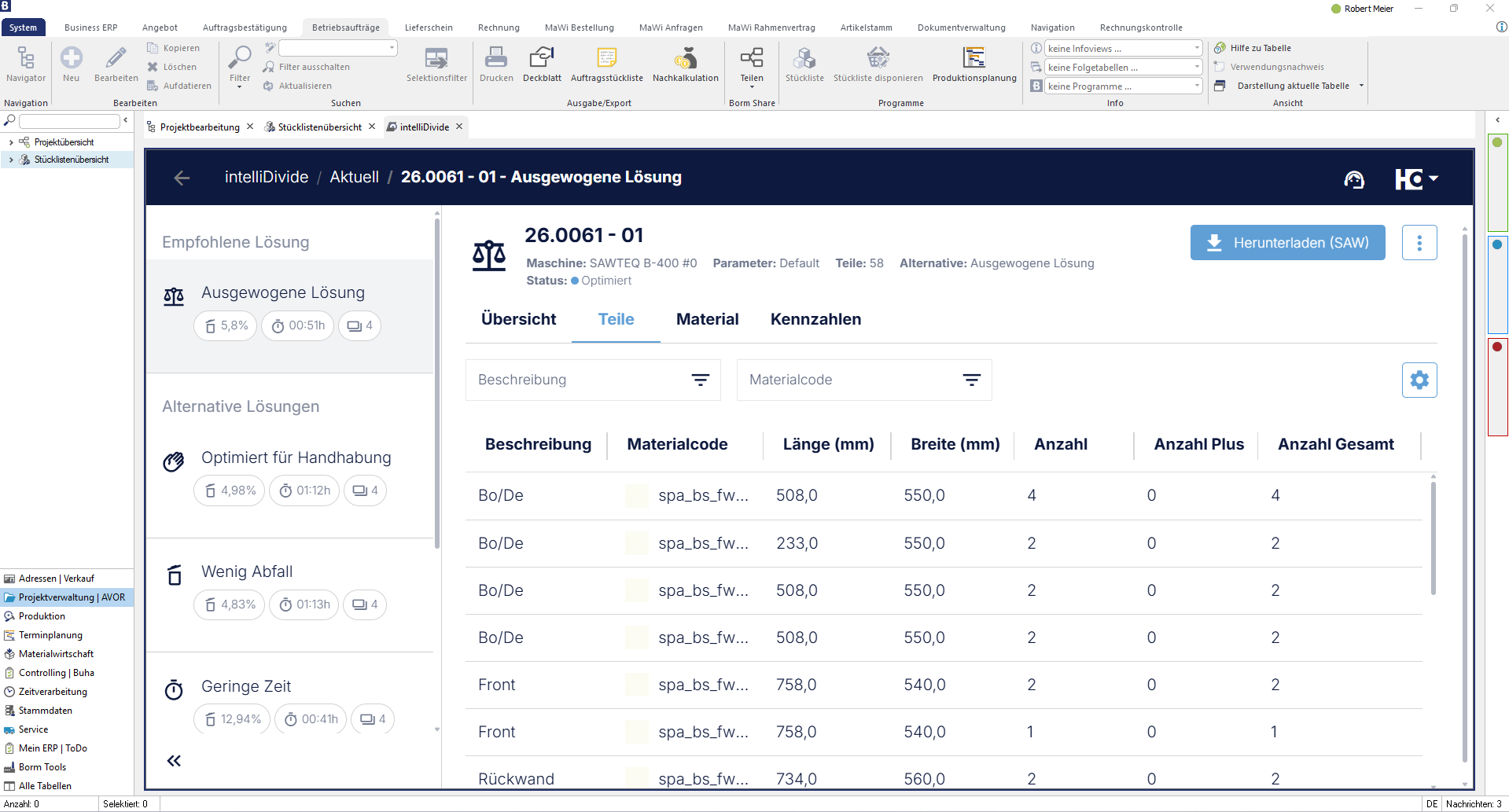

Business ERP / Smart ERP

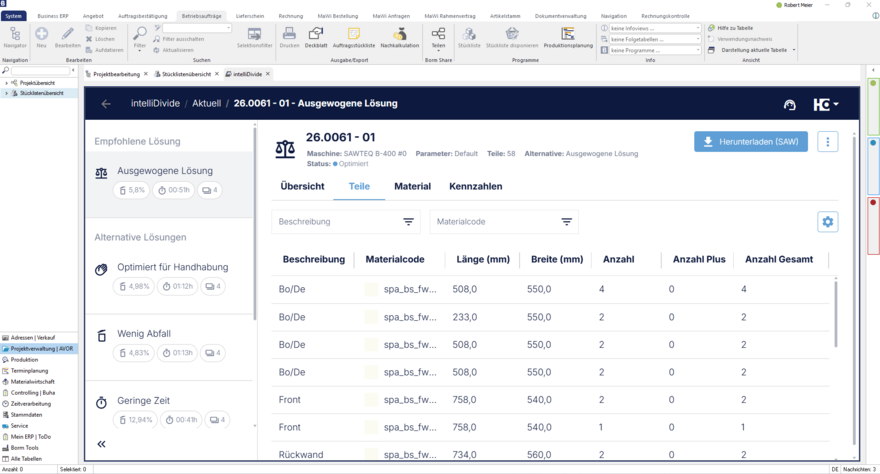

Business ERP / Smart ERP
EfiCAD – SWOOD (from Version 2021 SP1)
The "SWOODConnect productionManager" interface connects the CAD/CAM SWOOD from EfiCAD with the digital job folder, the productionManager from HOMAG.
Basic requirement: Version 2021 SP1
Integrated functions:
- Sending orders to productionManager
More information: swood.eficad.com
EfiCAD / SWOOD
imos – iX (from Version iX 21)
The "iXConnect interfaces" connect the CAD/CAM system iX from imos with the apps/digital products from HOMAG.
Basic requirement: Version iX 2021
Integrated functions:
- Sending orders to productionManager
- Sending orders to intelliDivide Cutting
- Sending orders to intelliDivide Nesting
More information: iX Connect interface
imos / HOMAG iX (from Version iX 21)
interiorcad/VectorWorks
interiorcad generates an order file that can be imported into HOMAG productionManager.
Basic requirement: From version 2025 F8. Export to productionManager is included in interiorcad Worker, Master, and Expert. interiorcad Starter is limited to exporting the cutting list (Excel).
Integrated function:
- Generation of the order file in ZIP format for manual import into productionManager.
interiorcad/VectorWorks
Kuhnle
Kuhnle generates an order file that can be imported into HOMAG productionManager.
Basic requirement: The interface is available in Kuhnle from version 2024 onwards in conjunction with the Kuhnle module parts list/calculation and the data exchange module.
Integrated function:
- Generation of the order file in ZIP format for manual import into productionManager.
Kuhnle
OSD - CRAFTVIEW
The "OSDConnect productionManager" interface connects the ERP software OSD by CRAFTVIED with the digital job folder, the productionManager from HOMAG.
Basic requirement: available from version 15
Integrated functions:
- Sending orders to productionManager
More information: https://www.osd.de/
CRAFTVIEW / OSD (from Version 15)
PaletteCAD
The "PaletteCAD interfaces" connect the CAD/CAM system PaletteCAD with the apps/digital products from HOMAG.
Basic requirement: Available to PaletteCAD beta test customers. Planned public release: March 2026
Integrated functions:
- Sending orders to productionManager
- Sending orders to intelliDivide Cutting
- Sending orders to intelliDivide Nesting
PaletteCAD
Tibek – SmartWOP (from Version 5)
The "SmartWOPConnect interfaces" connect the CAD/CAM system SmartWOP from Tibek with the apps/digital products from HOMAG.
Basic requirement: Version SmartWOP V5.
Integrated functions:
- Sending orders to productionManager
- Sending orders to intelliDivide Cutting
- Sending orders to intelliDivide Nesting
More information: tibek-cnc-technik.de/en
Tibek / SmartWOP (from Version 5)
Triviso ERP (from version 25)
The “Triviso Connect productionManager” interface connects the ERP world of Triviso with the digital job folder, the productionManager from HOMAG.
Basic requirement: Version 25
Integrated functions:
- Sending orders to productionManager
Further information: www.triviso.com
Triviso ERP (from Version 25)
TrunCAD
TrunCAD generates an order file that can be imported into HOMAG productionManager.
Basic requirement: TrunCAD 20XX V2024.32
Integrated function:
- Generation of the order file in ZIP format for manual import into productionManager.
TrunCAD
