Material-dependent optimization parameters for the maximum book height
intelliDivide Cutting, materialManager

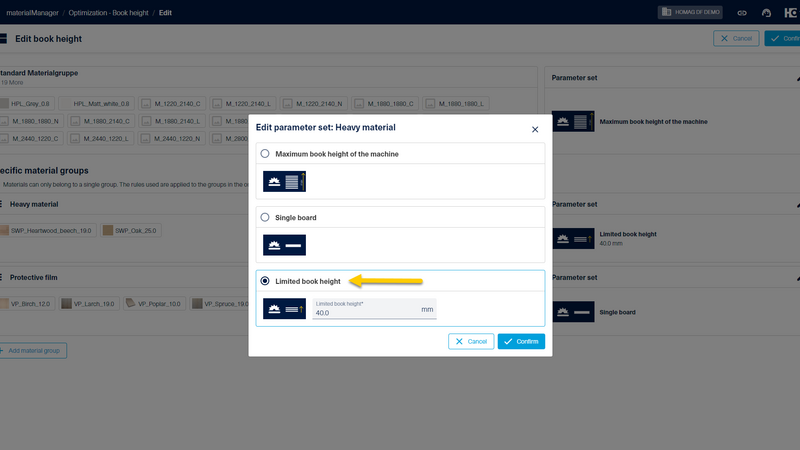

In the “Optimization” area of the materialManager, you have the option of creating material groups for optimization parameters for the maximum book height and specifying corresponding parameters.
Material groups can be formed based on material properties.
For heavy materials, the maximum book height can be limited to make the operator's work easier.
For sensitive boards or boards covered with protective film, it can be specified that each board is to be processed individually.
With standard materials, the maximum allowed book height of the machine can be fully utilized.
For the settings made in materialManager to take effect, this function must be activated in intelliDivide for the respective machine.
In the “Book height” column in the “Boards” tab, the material group is displayed for each material.
From now on, parameters for the maximum book height can be stored in the materialManager in the Optimization area, similar to the offcuts depending on the material, which are used in intelliDivide. For this purpose, the materials are grouped according to their properties.
This grouping makes it possible to define a different maximum book height depending on the properties of a material.
For sensitive materials, for example, it is possible to specify that no books are formed and that each board is processed individually. For very heavy materials, the book height can be limited to make the operator's work easier, while the maximum allowed book height of the machine is utilized as standard.
Material dependent optimization parameters usage depends on the possibilities of the machine. For example, with a SAWTEQ S-320 flexTec or a circular table saw, each board is processed individually regardless of the settings.
This function availability depends on the license. It is included in intelliDivide Cutting Advanced and Premium.
