12/19/2023

Visualized additional data through integrated 3D viewer

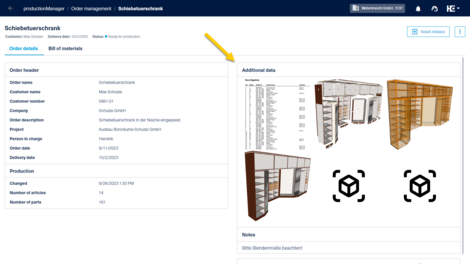

3D files in the additional information

3D view of an order

Semi transparent 3D view of an order

Used zoom function of a 3D view

Opening a 3D view in a separate 3D viewer

Opened 3D view in a separate 3D viewerr

You use the CAD/CAM system SmartWOP and the interface "SmartWOPConnect productionManager"?

Then we have good news for you. Through our 3D viewer in productionManager you can view your planning in a zoomable and rotatable 3D view. The currently displayed view is a usable working status.

It is now also possible to display textures and sequential numbers, which are known to you from SmartWOP, in the 3D viewer.

Tip: If you click on the icon in the lower right corner of the additional data in the productionManager, the 3D file will be opened in the 3D viewer. By using the 3D viewer, you can, for example, hide individual parts or measure distances.
