Connecting vertical milling
Combining identical machining operations.
With the new function, identical machining operations can be combined.

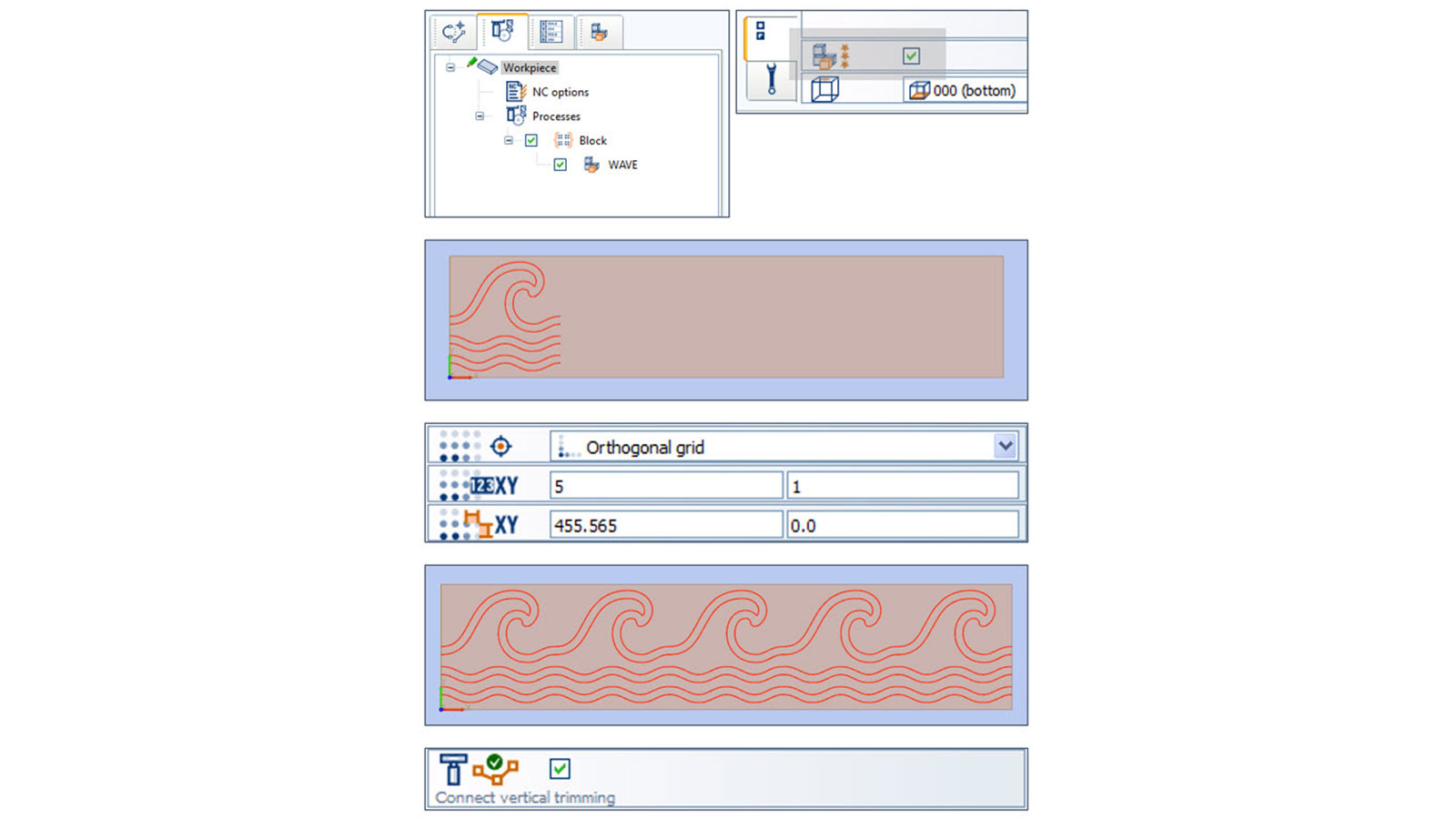

In woodWOP, a milling operation has always had a start-up movement and a shut-down movement. With the new function "Combining vertical milling operations", identical operations can be combined. To do this, the end point of the previous milling operation and the start point of the subsequent milling operation must match and all other parameters must be identical. This function is now also available for milling operations that are programmed in components and duplicated in the block macro, for example. In version 8.1 there is a new parameter in the NC options.
The advantages at a glance:
By linking milling operations, approach and retract movements can be avoided à Time saving
This function enables the variable connection of contour machining operations, for example for patterns or ornaments
